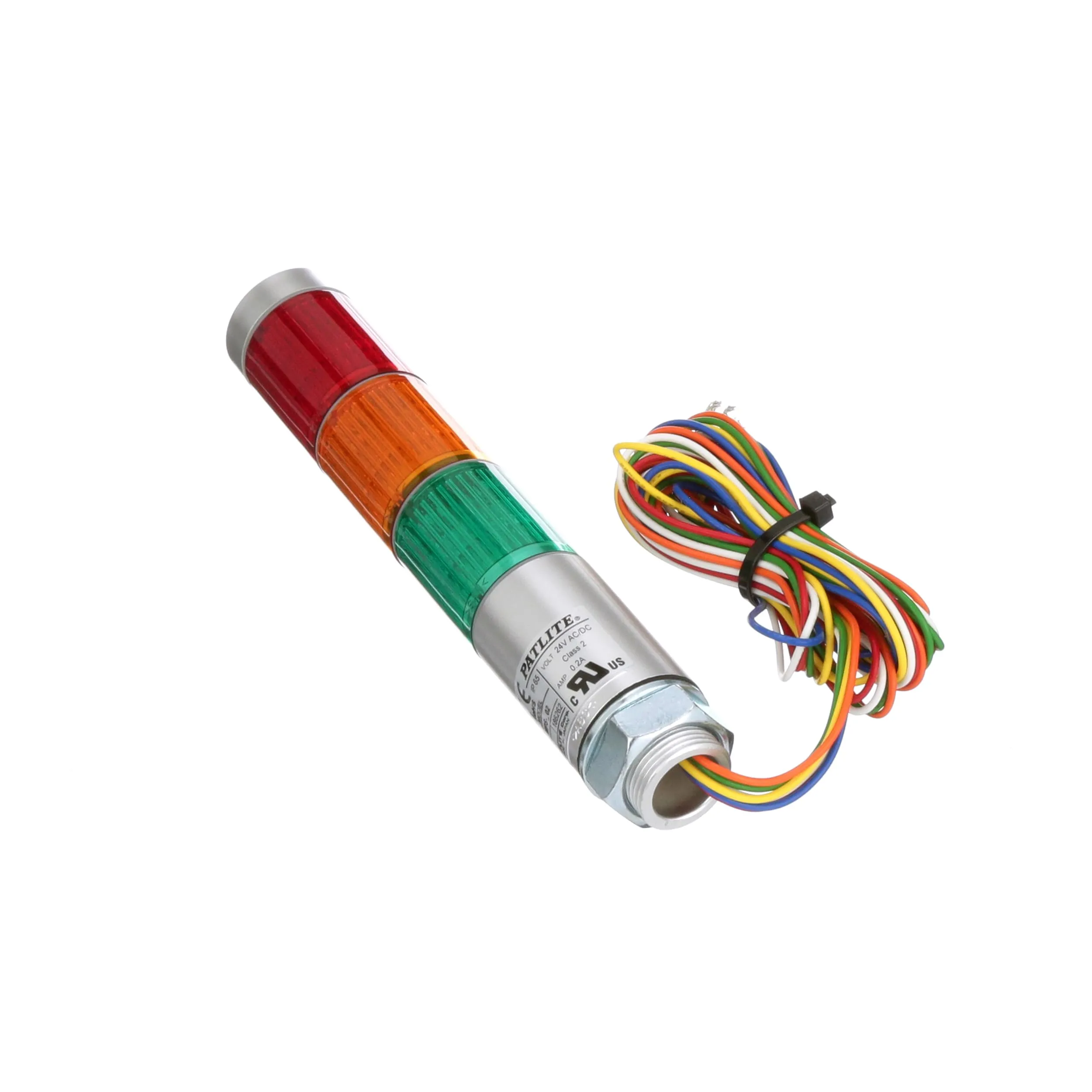

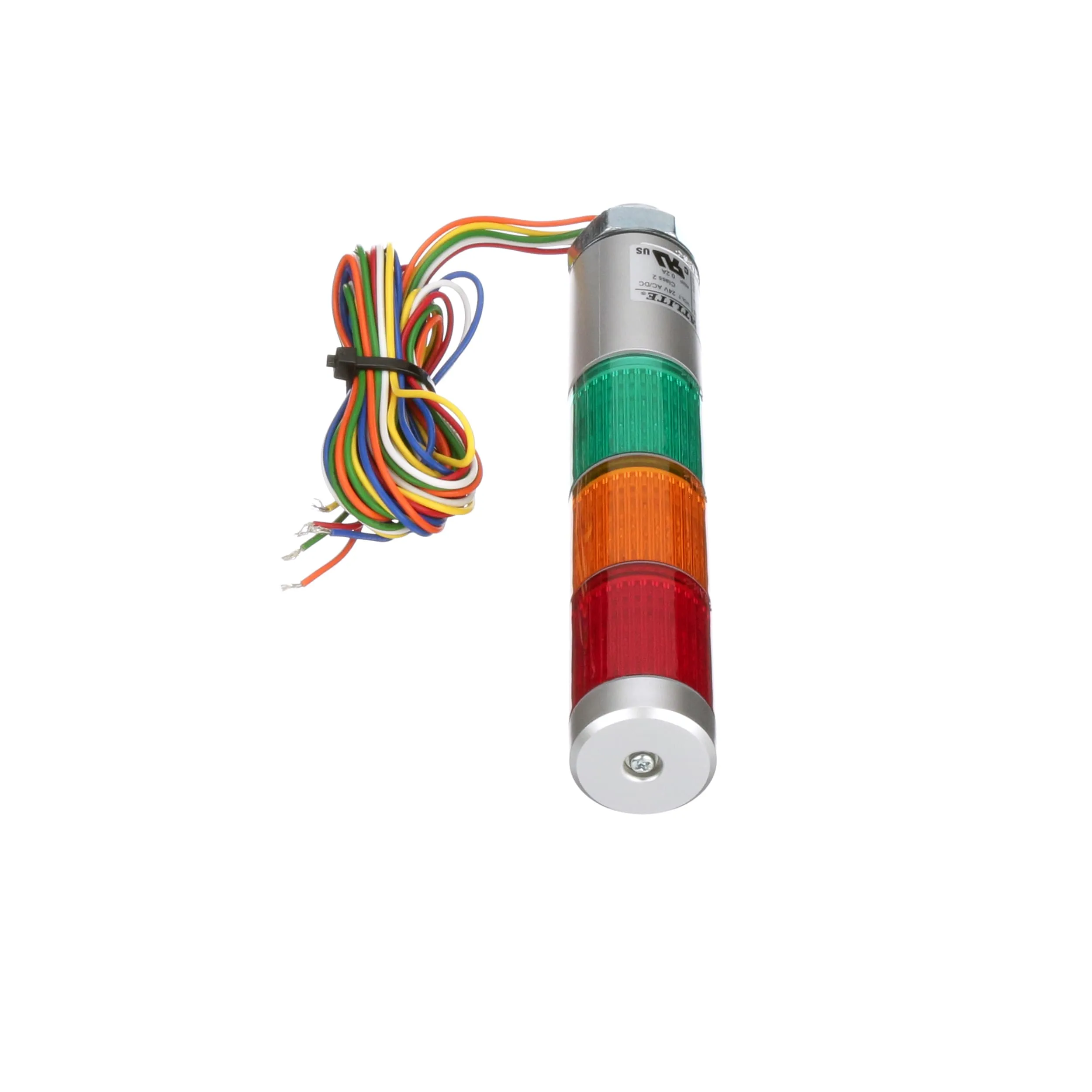

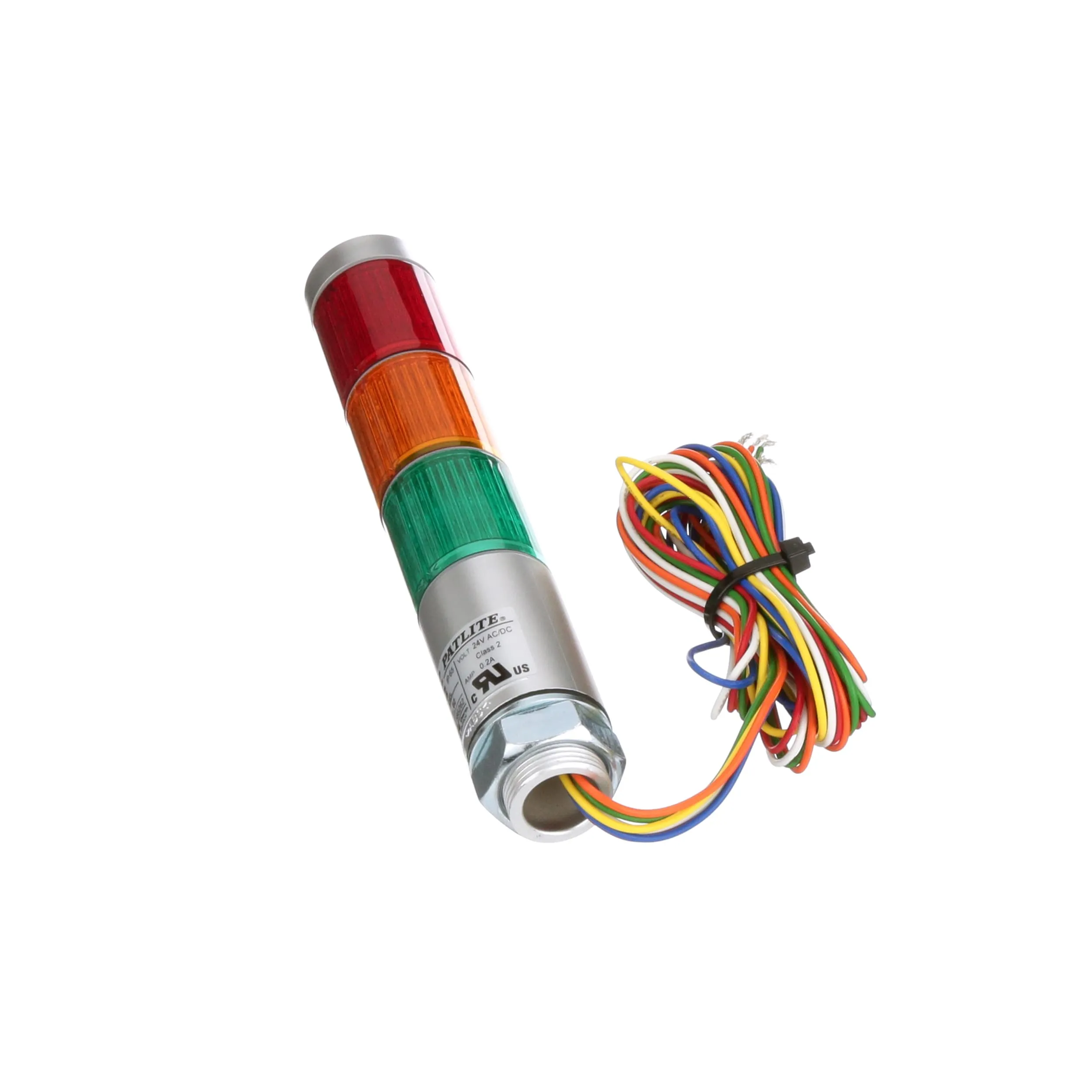

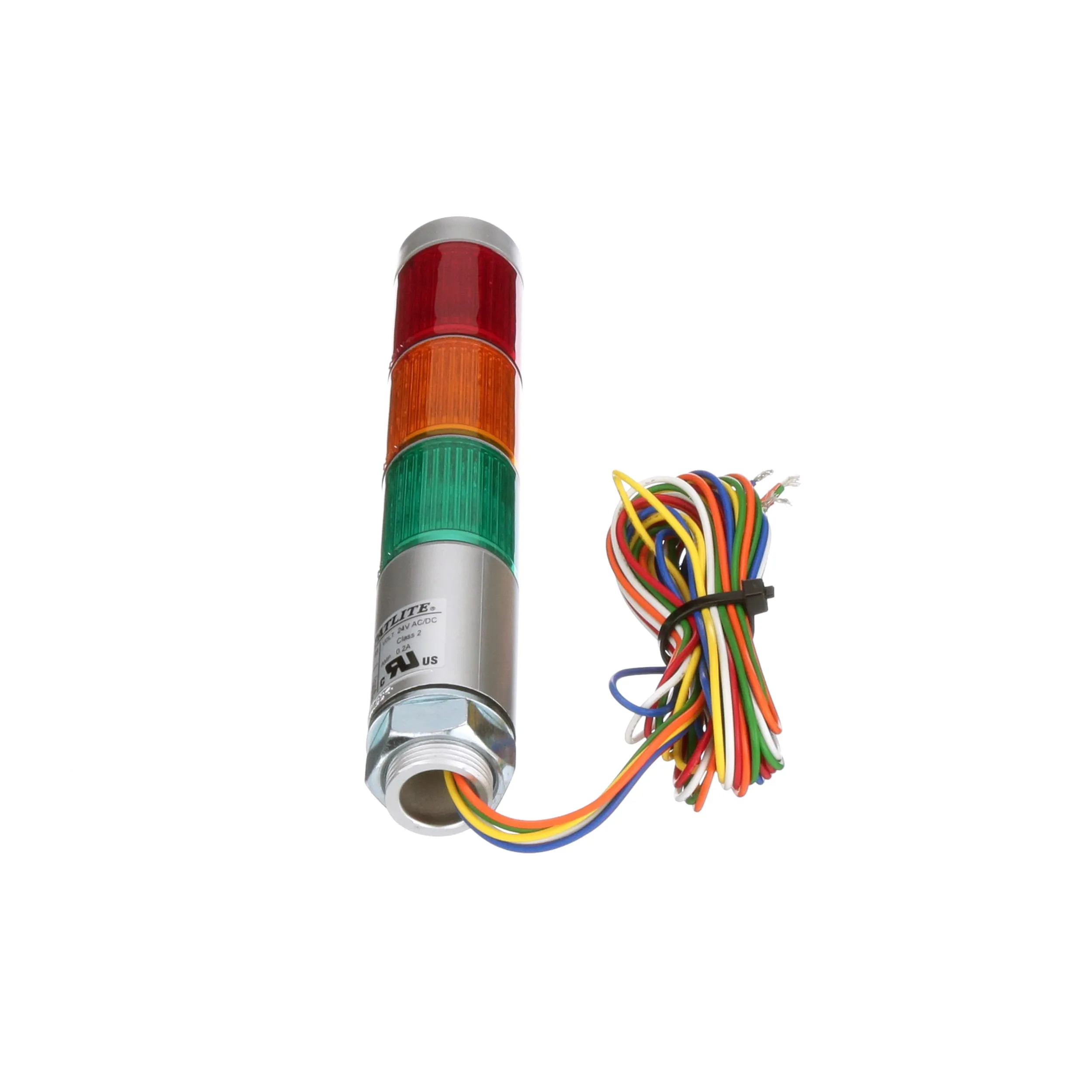

Name: Patlite MPS-302-RYG
SKU: 205648

Product Attribute	Attribute Value
Alternate Mfr Part Number	MPS-302-RYG
Bulb Type	LED
Color	Green ; Red ; Yellow
Connection Type	Leadwires
Current Consumption	32.7 (Red), 33 (Green), 34.5 (Amber) mA
Diameter, Base	30 mm
Dimensions	30mm Dia. x 160mm H
Enclosure Rating	IP65
Height	6.969" (177mm)
IP Rating	IP65
Lens Color	Amber ; Green ; Red
Minimum Operating Temperature	-30 °C
Mounting Style	Panel Mount
Number of Levels	3
Primary Type	Tower
Product Header	MPS Series Continuous Visual Warning Device
Series
Size	30 mm
Special Features	Double-Insulated Construction, Impact & Heat Resistant Body, Prism-Cut Lens, Super Slim, Weather Resistance
Supply Voltage	24 VAC/VDC
Temperature Range	-30 to 60°C
Temperature, Opening, Maximum	60 °C
Type	Continuous

Diameter Size: 30 mm (1-1/4 In.)

ABS Resin Body is Available in 220 mm (8.66 In.) Standard Length (MP) or 45 mm (1.77 In.) Short Body (MPS)

Voltage: 24 VAC

LED Modules Are Interchangeable and Stackable After Purchase (Up to 5 LED Modules)

Colors Available: Red, Yellow, Green, Blue and Clear

UL Component Recognized

CE Compliant

IP-65 Rated

NPN and PNP Open Collector Transistor Compatible

All Models Are Shipped Pre-Wired and Pre-Assembled for Easy Ordering and Installation

Includes Hex Nut and Washer

Can Be Mounted on a Flat Surface with a Single Hole

Patented PATLITE LED Modules Provide the Highest Level of Visibility

LEDs with Long Life, Low Power Consumption, and Low Maintenance

Optional Mounting Brackets Are Available

All Clear Lenses (No Color Until Power is Supplied) Are Available By Special Order
