| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | LME-302W-RYG |
| Bulb Type | LED |
| Color | Green ; Red ; Yellow |
| Connection Type | Leadwires |
| Current Consumption | 29.1 (Green), 65.5 (Amber), 65.5 (Red) mA |
| Diameter, Base | 60 mm |
| Dimensions | 60mm Dia. x 232mm H |
| Enclosure Rating | IP65 |
| Height | 9.15" (232.4mm) |
| IP Rating | IP65 |
| Lens Color | Amber ; Green ; Red |
| Minimum Operating Temperature | -30 °C |
| Mounting Style | Panel Mount |
| Number of Levels | 3 |
| Primary Type | Tower |
| Product Header | LME Series Continuous Visual Warning Device |
| Series | |
| Size | 60 mm |
| Special Features | Dual Reflection System, Hybrid Prism Cut Lens, Impact & Heat Resistant Body, Impact Resistant Lens |
| Supply Voltage | 24 VAC/VDC |
| Temperature Range | -30 to 60°C |
| Temperature, Opening, Maximum | 60 °C |
| Type | Continuous |

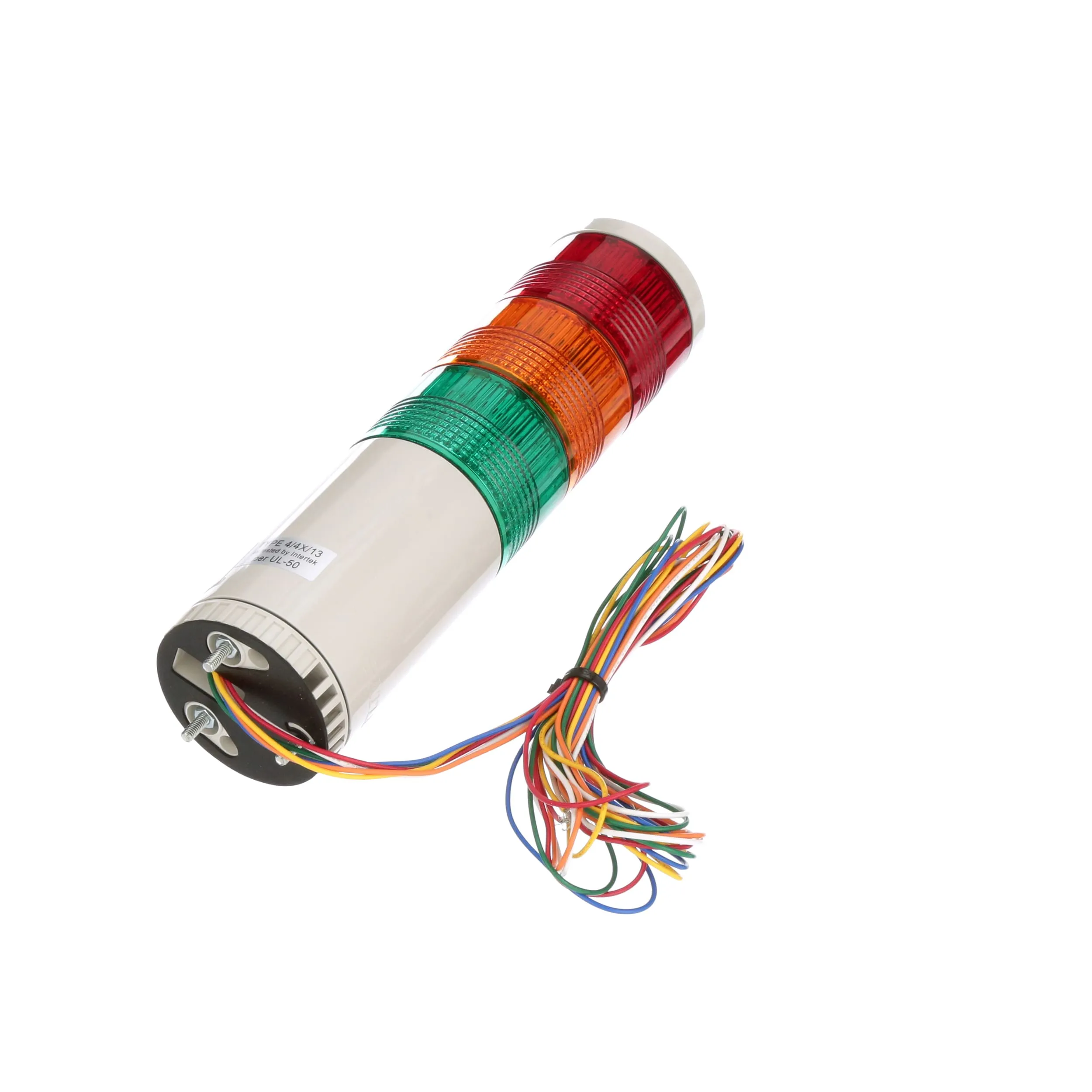

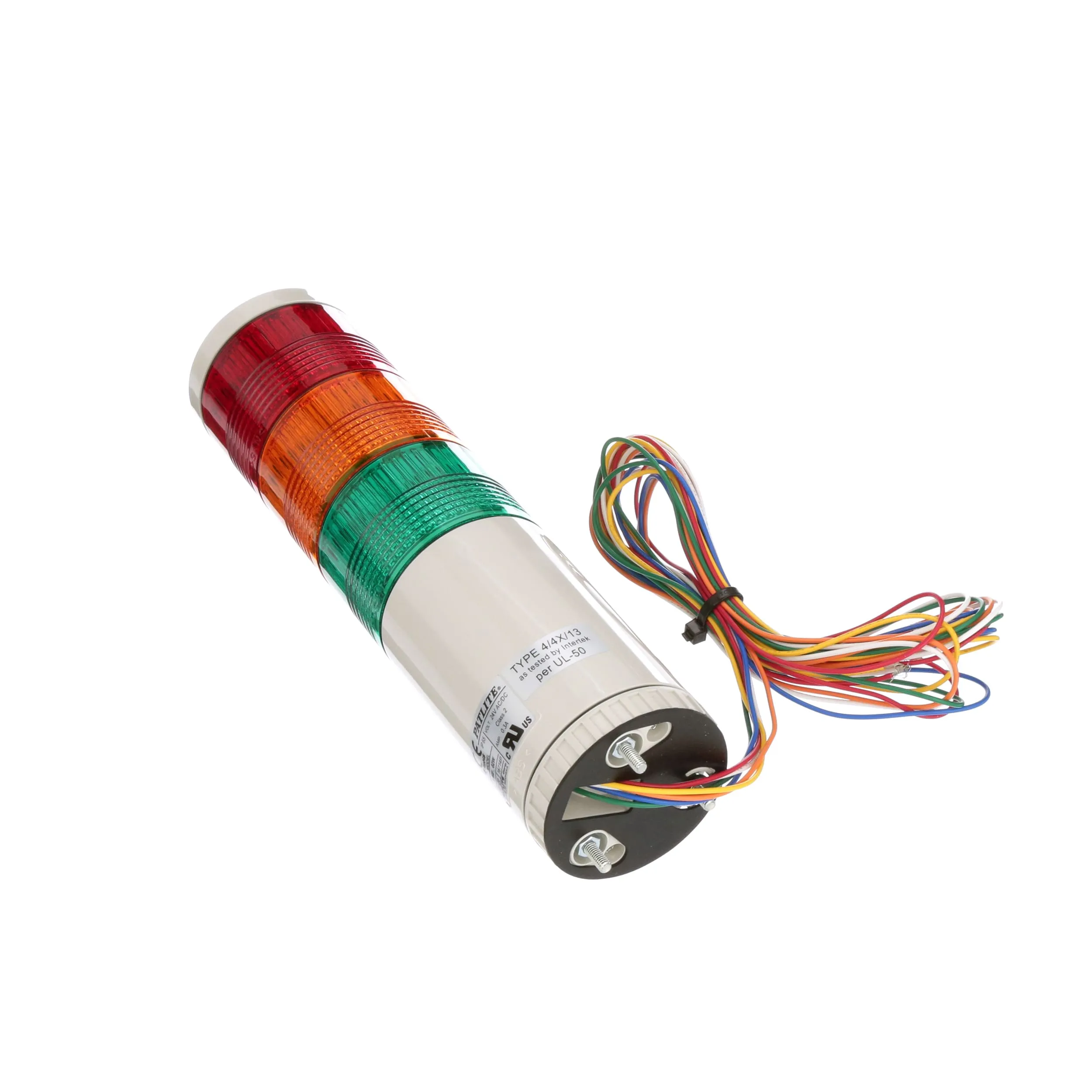

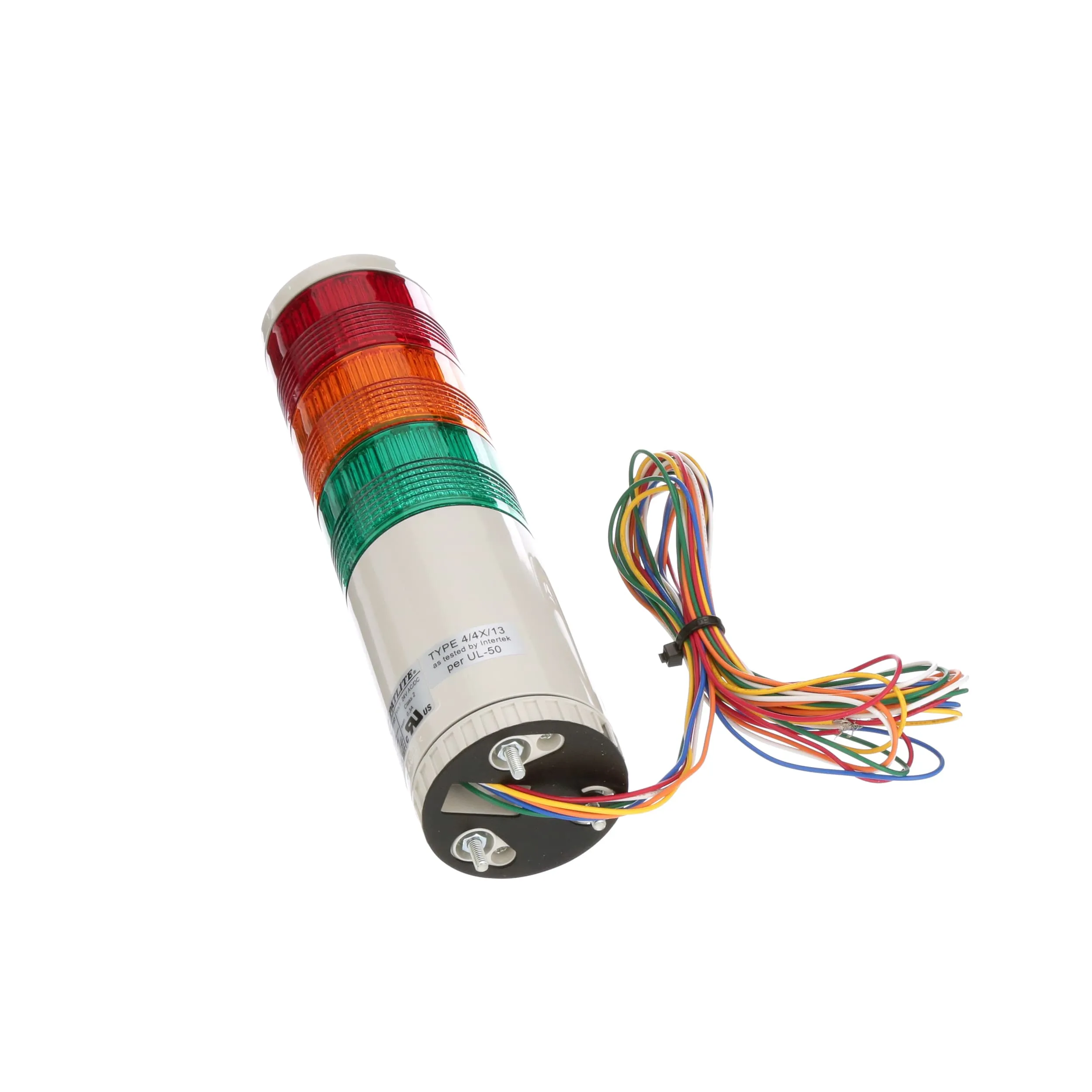

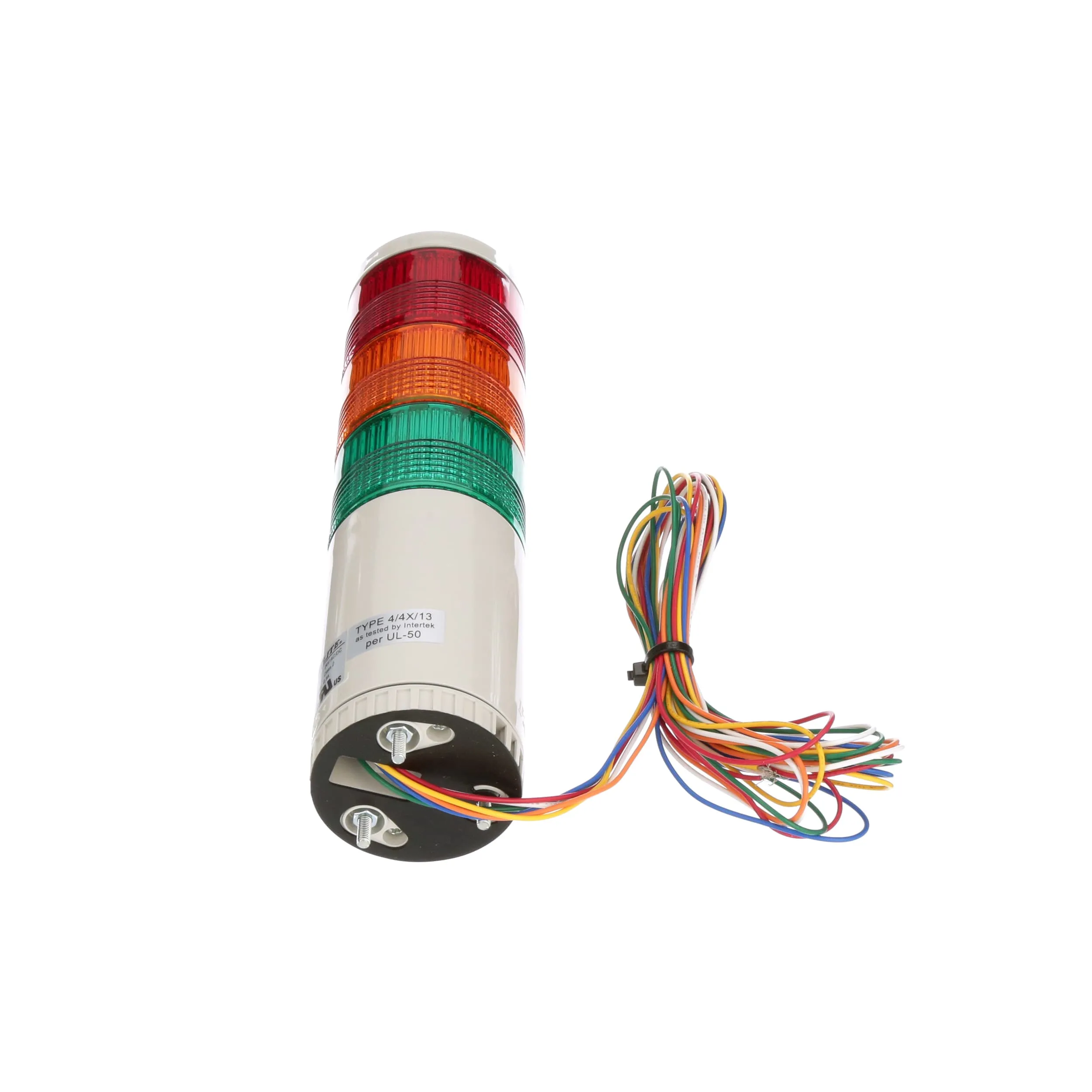

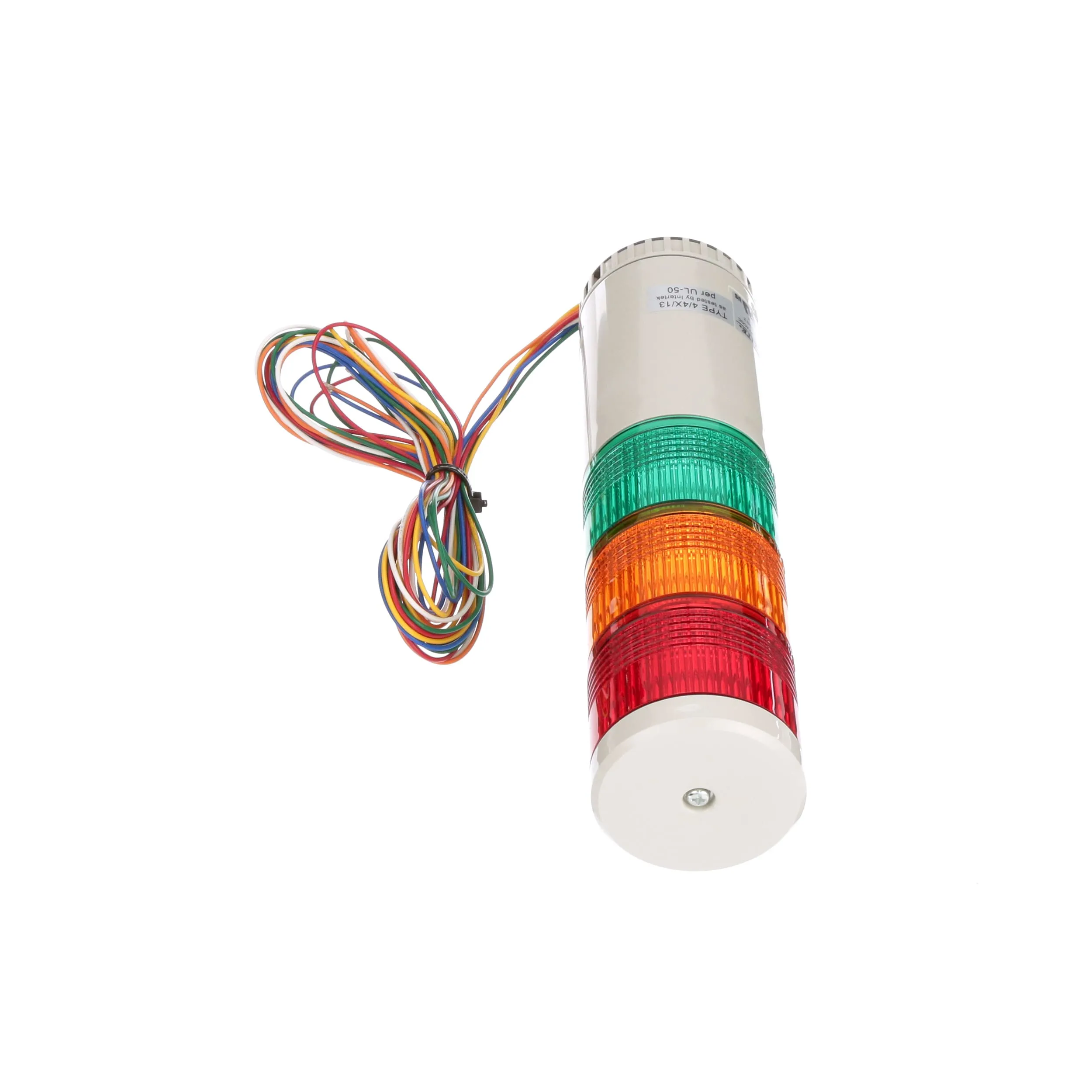

Overview
The LME 60 mm diameter light tower series is interchangeable and stackable. The units are completely pre-wired and pre-assembled for easy installation.
